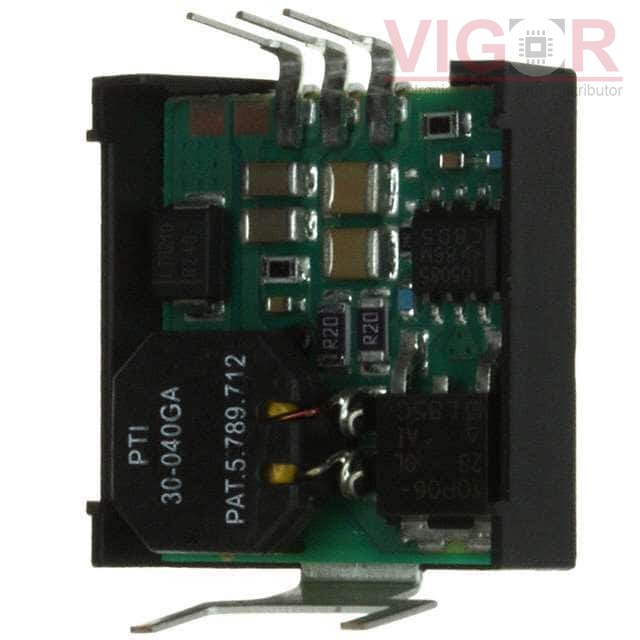

PT78NR212H

Part No :: PT78NR212H

Manufacturer: Texas Instruments

VIGOR # :: 5033473

Description: DC DC CONVERTER -12V

Catalog: DC DC Converters

DataSheet: PT78NR212H PDF

Country of origin: -

Date code: -

PT78NR212H Specifications

Type	Description
Series:	PT78NR200 (12W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	15V
Voltage - Output 1:	-12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	0°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.93" L x 1.01" W x 0.38" H (23.6mm x 25.7mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
VX7803-1000R Match 100%	CUI Inc. DC DC CONVERTER 3.3V 3.3W	PT78NR212H vs VX7803-1000R
PT5123A Match 100%	Texas Instruments DC DC CONVERTER 3.3V	PT78NR212H vs PT5123A
PT5123M Match 100%	Texas Instruments DC DC CONVERTER 3.3V	PT78NR212H vs PT5123M
PT5121A Match 100%	Texas Instruments DC DC CONVERTER 5V	PT78NR212H vs PT5121A
PT78NR105H Match 100%	Texas Instruments DC DC CONVERTER -5V	PT78NR212H vs PT78NR105H
78SP117HC Match 100%	Texas Instruments DC DC CONVERTER 17V	PT78NR212H vs 78SP117HC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 894

Shipped from

HK warehouse

Expected Shipping Date

Aug 13 - Aug 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PT78NR212H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
