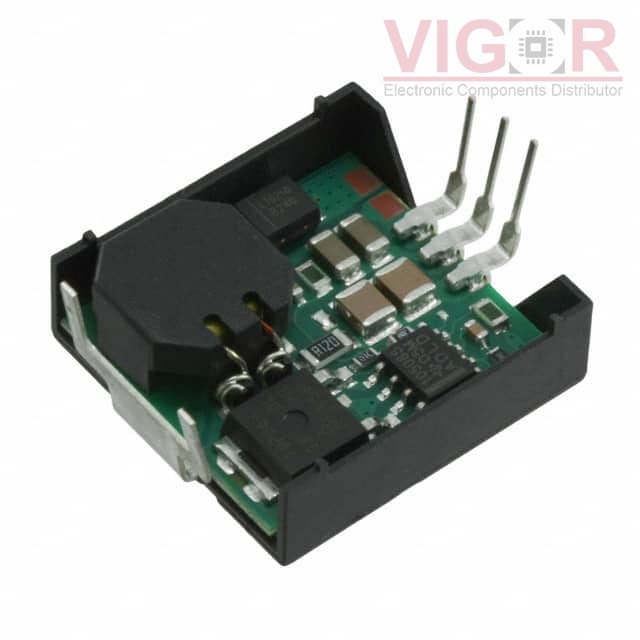

Part No :

78SR109HC

Manufacturer
Texas Instruments
VIGOR # :

5036708

Description
DC DC CONVERTER 9V
Catalog
DC DC Converters
DataSheet
78SR109HC PDF
Country of origin
-
Date code
-
ads
Type Description
Series:78SR100
Package:Tray
Part Status:Obsolete
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):14.5V
Voltage - Input (Max):30V
Voltage - Output 1:9V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):1.5A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:OTP, SCP
Operating Temperature:-40°C ~ 85°C
Efficiency:-
Mounting Type:Through Hole, Right Angle
Package / Case:3-SIP Module
Size / Dimension:0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
Part Number Manufacturer & Description Compare
78SR110HC Match 86%
VIGOR
SWITCHING REGLTR, VOLTAGE-MODE
78SR109HC vs 78SR110HC
PT78ST109H Match 100%
Texas Instruments
DC DC CONVERTER 9V
78SR109HC vs PT78ST109H
78SR108HC Match 84%
Texas Instruments
DC DC CONVERTER 8V
78SR109HC vs 78SR108HC
PT78ST110H Match 86%
Texas Instruments
DC DC CONVERTER 10V
78SR109HC vs PT78ST110H
PT78ST108H Match 84%
Texas Instruments
DC DC CONVERTER 8V
78SR109HC vs PT78ST108H
PT78ST174H Match 68%
Texas Instruments
DC DC CONVERTER 7.15V
78SR109HC vs PT78ST174H
