PT4472C

PT4472C

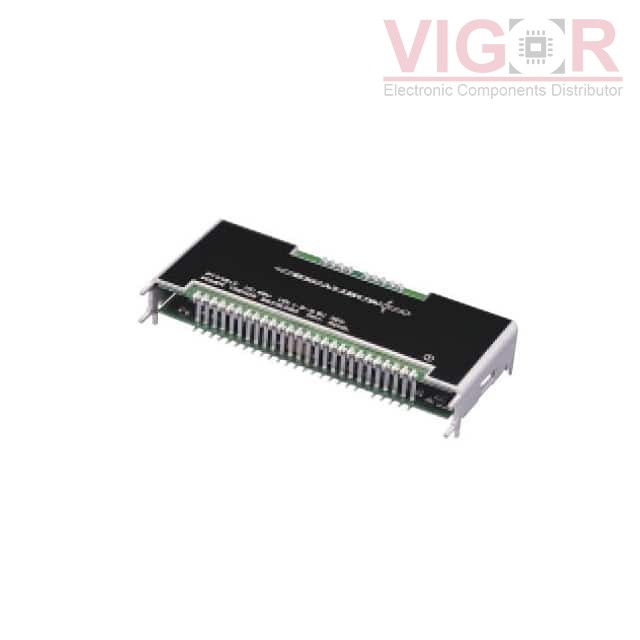

Image is for reference,
please contact us to get the real picture

Part No :

PT4472C

Manufacturer
Texas Instruments
Description
DC DC CONVERTER 1.3-3.5V 100W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Oct 05 - Oct 09 2025
DataSheet
PT4472C PDF
Availability
1636 pieces
Unit Price
$0.00000

Current price of PT4472C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT4472C Specifications
Type Description
Series:Excalibur™ PT4472 (100W)
Package:Tray
Part Status:Obsolete
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):18V
Voltage - Input (Max):36V
Voltage - Output 1:1.3 ~ 3.5V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):30A
Power (Watts):100 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature:-40°C ~ 85°C
Efficiency:89%
Mounting Type:Surface Mount
Package / Case:26-SMD Module
Size / Dimension:3.61" L x 1.62" W x 0.50" H (91.7mm x 41.1mm x 12.7mm)
Supplier Device Package:-
Control Features:Enable, Active Low
Approval Agency:-
Standard Number:-
