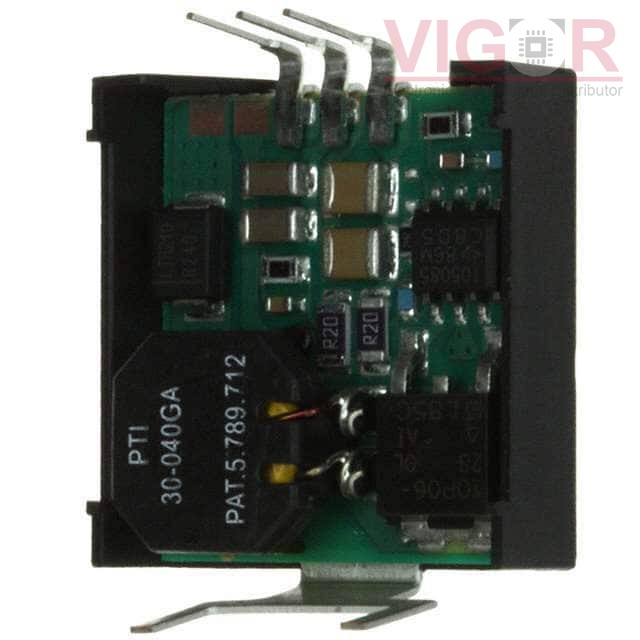

PT78NR215H

Part No :: PT78NR215H

Manufacturer: Texas Instruments

VIGOR # :: 5037089

Description: DC DC CONVERTER -15V

Catalog: DC DC Converters

DataSheet: PT78NR215H PDF

Country of origin: -

Date code: -

PT78NR215H Specifications

Type	Description
Series:	PT78NR200 (12W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	15V
Voltage - Output 1:	-15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	800mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	0°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.93" L x 1.01" W x 0.38" H (23.6mm x 25.7mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
VX7803-1000R Match 68%	CUI Inc. DC DC CONVERTER 3.3V 3.3W	PT78NR215H vs VX7803-1000R
PT78NR152H Match 68%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT78NR215H vs PT78NR152H
PT78NR106H Match 100%	Texas Instruments DC DC CONVERTER -6V	PT78NR215H vs PT78NR106H
PT78NR103H Match 68%	Texas Instruments DC DC CONVERTER -3V	PT78NR215H vs PT78NR103H
PT5123A Match 68%	Texas Instruments DC DC CONVERTER 3.3V	PT78NR215H vs PT5123A
PT5123M Match 68%	Texas Instruments DC DC CONVERTER 3.3V	PT78NR215H vs PT5123M

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 109

Shipped from

HK warehouse

Expected Shipping Date

Nov 02 - Nov 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PT78NR215H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
