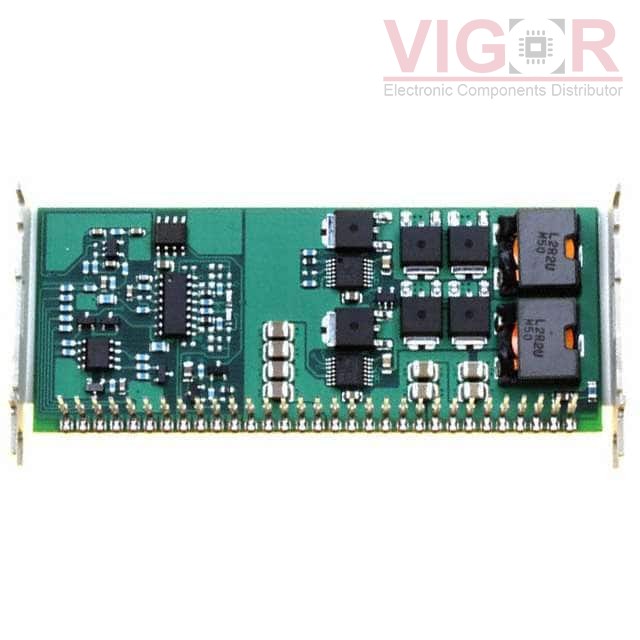

PT8122N

Part No :: PT8122N

Manufacturer: Texas Instruments

VIGOR # :: 5038005

Description: DC DC CONVERTER 1.075-1.85V

Catalog: DC DC Converters

DataSheet: PT8122N PDF

Country of origin: -

Date code: -

PT8122N Specifications

Type	Description
Series:	Excalibur™ PT8120
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	1.075 ~ 1.85V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	30A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	31-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT8121N Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT8122N vs PT8121N
PT8125N Match 90%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT8122N vs PT8125N
PT8139N Match 100%	Texas Instruments DC DC CONVERTER 1.7-4V	PT8122N vs PT8139N
