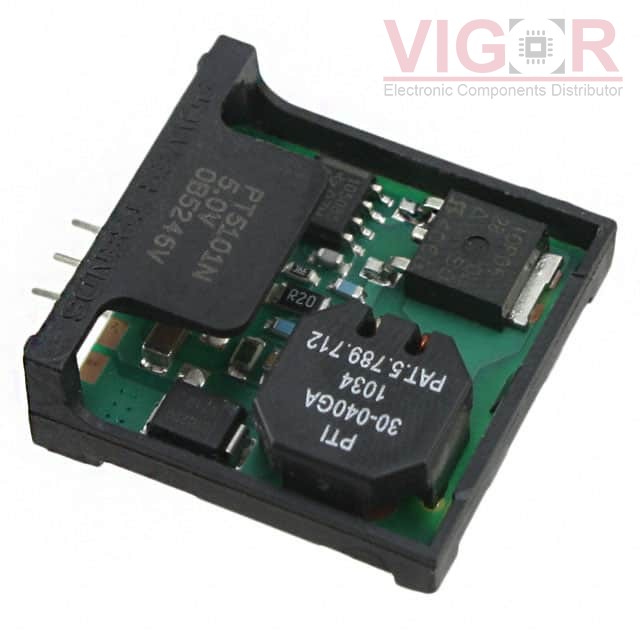

PT5102N

Part No :: PT5102N

Manufacturer: Texas Instruments

VIGOR # :: 5038211

Description: DC DC CONVERTER 12V 12W

Catalog: DC DC Converters

DataSheet: PT5102N PDF

Country of origin: -

Date code: -

PT5102N Specifications

Type	Description
Series:	PT5100
Package:	Tray
Part Status:	Obsolete
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	16V
Voltage - Input (Max):	38V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	12 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	94%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	1.00" L x 0.38" W x 1.02" H (25.4mm x 9.7mm x 25.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
