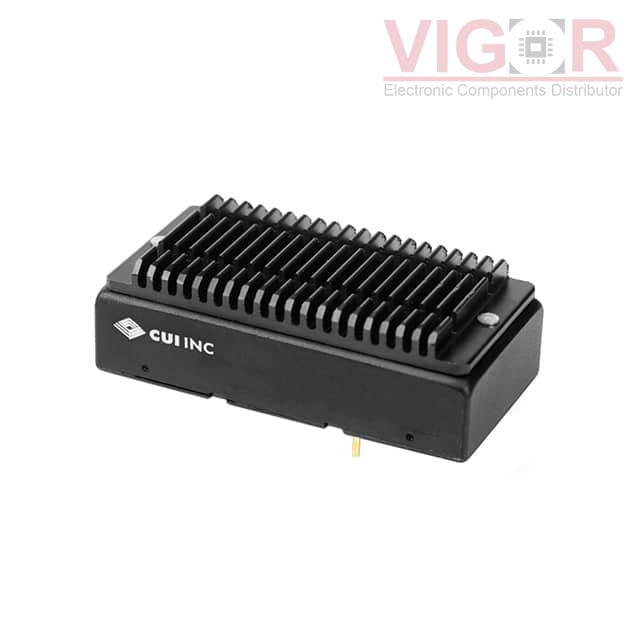

PYB15-Q24-S15-H

Part No :: PYB15-Q24-S15-H

Manufacturer: CUI Inc.

VIGOR # :: 5042477

Description: DC DC CONVERTER 15V 15W

Catalog: DC DC Converters

DataSheet: PYB15-Q24-S15-H PDF

Country of origin: -

Date code: -

PYB15-Q24-S15-H Specifications

Type	Description
Series:	PYB15 (15W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	15 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.64" H (50.8mm x 25.4mm x 16.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
UEI15-150-Q12N-C Match 91%	Murata Power Solutions DC DC CONVERTER 15V 15W	PYB15-Q24-S15-H vs UEI15-150-Q12N-C
SPM15-150-Q12N-C Match 95%	Murata Power Solutions DC DC CONVERTER 15V 15W	PYB15-Q24-S15-H vs SPM15-150-Q12N-C
SPM15-150-Q12-C Match 95%	Murata Power Solutions DC DC CONVERTER 15V 15W	PYB15-Q24-S15-H vs SPM15-150-Q12-C
URB2415YMD-15WR3 Match 100%	Mornsun DC DC CONVERTER 15V 15W	PYB15-Q24-S15-H vs URB2415YMD-15WR3
SPM15-150-Q12P-C Match 95%	Murata Power Solutions DC DC CONVERTER 15V 15W	PYB15-Q24-S15-H vs SPM15-150-Q12P-C
SKMW15F-15 Match 91%	MEAN WELL DC DC CONVERTER 15V 15W	PYB15-Q24-S15-H vs SKMW15F-15
