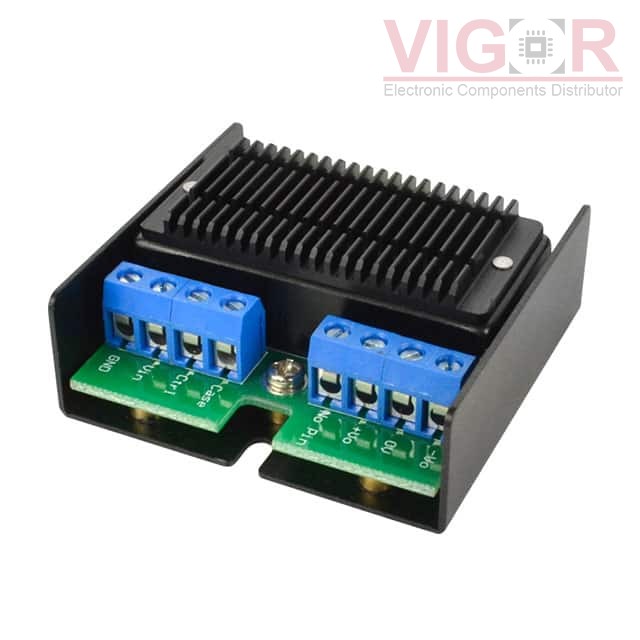

PYB20-Q24-D12-H-U

Part No :: PYB20-Q24-D12-H-U

Manufacturer: CUI Inc.

VIGOR # :: 4471735

Description: DC/DC CONVERTER +/-12V 20W

Catalog: DC DC Converters

DataSheet: PYB20-Q24-D12-H-U PDF

Country of origin: -

Date code: -

PYB20-Q24-D12-H-U Specifications

Type	Description
Series:	PYB20-U (20W)
Package:	Tube
Part Status:	Obsolete
Type:	Enclosed
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Number of Outputs:	2
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	834mA, 834mA
Power (Watts):	20W
Voltage - Isolation:	-
Applications:	-
Efficiency:	88%
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Chassis Mount
Size / Dimension:	2.99" L x 1.24" W x 0.99" H (76.0mm x 31.5mm x 25.1mm)
Approval Agency:	EN, IEC
Standard Number:	-

Please confirm the specifications of the products when ordering.
