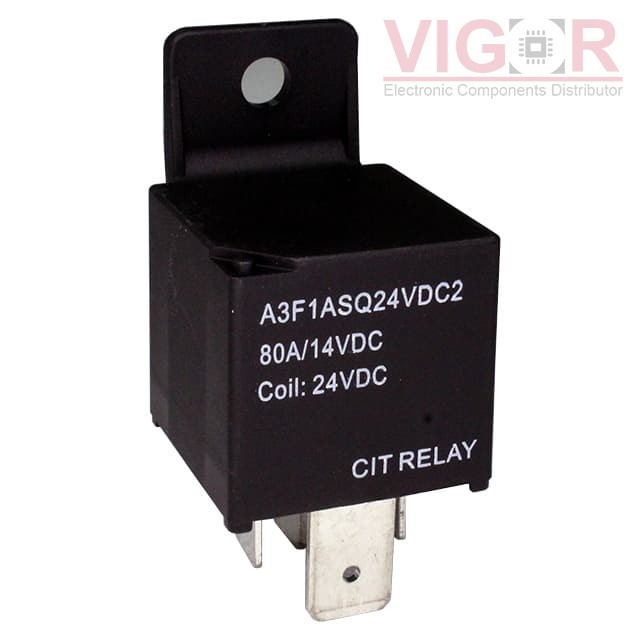

A3F1ASQ24VDC2D

Part No :: A3F1ASQ24VDC2D

Manufacturer: CIT Relay and Switch

VIGOR # :: 4193080

Description: RELAY AUTO FLANGED HD SPST 24VDC

Catalog: Automotive Relays

DataSheet: A3F1ASQ24VDC2D PDF

Country of origin: Confirming

Date code: TBC

A3F1ASQ24VDC2D Specifications

Type	Description
Series:	A3F
Package:	Tray
Part Status:	Active
Coil Type:	Non Latching
Coil Current:	75 mA
Coil Voltage:	24VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	80 A
Switching Voltage:	75VDC - Max
Must Operate Voltage:	16.8 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	7 ms
Release Time:	5 ms
Features:	Diode, Sealed - Fully
Mounting Type:	Chassis Mount
Termination Style:	Quick Connect - Multiple Sizes
Operating Temperature:	-40°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 94

Shipped from

HK warehouse

Expected Shipping Date

Nov 12 - Nov 16 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.4900~~	~~$3.49~~

Current price of A3F1ASQ24VDC2D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
