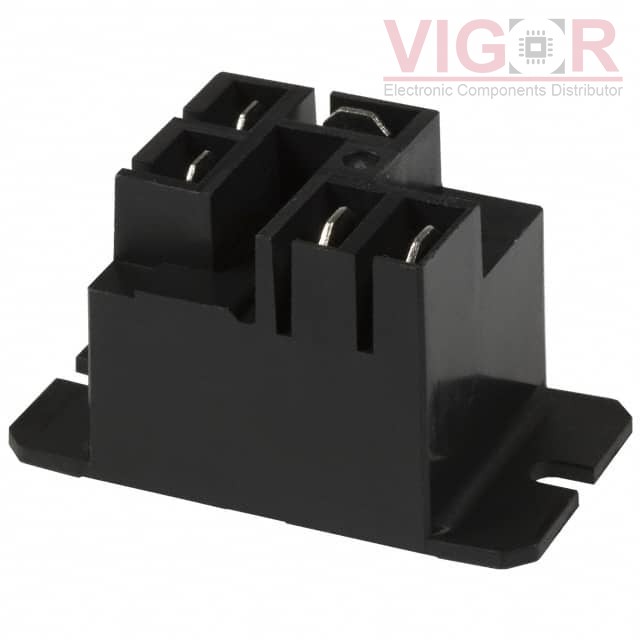

T9AP1D52-22-01

Image is for reference,
please contact us to get the real picture

Part No :: T9AP1D52-22-01

Manufacturer: TE Connectivity Potter & Brumfield Relays

Description: RELAY GEN PURPOSE SPST 30A 22V

Catalog: Power Relays, Over 2 Amps

DataSheet: T9AP1D52-22-01 PDF

Availability: 0 pieces

Unit Price: ~~$3.71000~~

Current price of T9AP1D52-22-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

T9AP1D52-22-01 Specifications

Type	Description
Series:	T9A
Package:	Bulk
Part Status:	Active
Mounting Type:	Chassis Mount
Coil Voltage:	22VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	30 A
Switching Voltage:	277VAC - Max
Coil Current:	45.5 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.187"/0.250"
Seal Rating:	-
Coil Insulation:	Class F
Must Operate Voltage:	16.5 VDC
Must Release Voltage:	2.2 VDC
Operate Time:	15 ms
Release Time:	15 ms
Operating Temperature:	-55°C ~ 85°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
