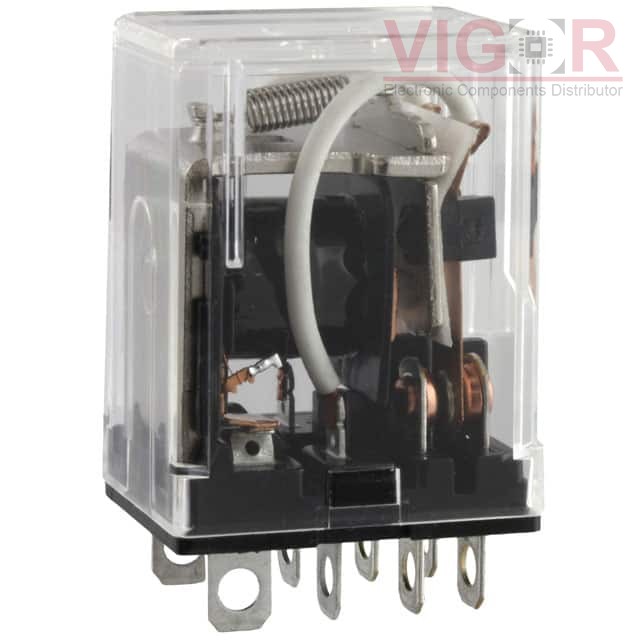

HL1-H-DC24V-F

Part No :: HL1-H-DC24V-F

Manufacturer: Panasonic

VIGOR # :: 2689098

Description: RELAY GEN PURPOSE SPDT 15A 24V

Catalog: Power Relays, Over 2 Amps

DataSheet: HL1-H-DC24V-F PDF

Country of origin: -

Date code: -

HL1-H-DC24V-F Specifications

Type	Description
Series:	HL
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Socketable
Coil Voltage:	24VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	15 A
Switching Voltage:	125VAC - Nom
Coil Current:	37 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	19.2 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	25 ms
Release Time:	25 ms
Operating Temperature:	-50°C ~ 70°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
