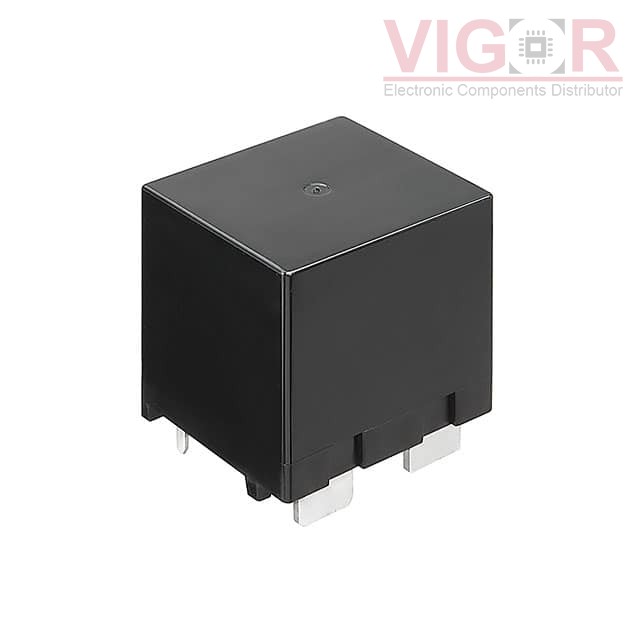

HE1AN-P-DC12V-Y5

Part No :: HE1AN-P-DC12V-Y5

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 48A 12V

Catalog: Power Relays, Over 2 Amps

DataSheet: HE1AN-P-DC12V-Y5 PDF

Availability: 3519 pieces

Unit Price: ~~$33.37000~~

Current price of HE1AN-P-DC12V-Y5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HE1AN-P-DC12V-Y5 Specifications

Type	Description
Series:	HE-PV
Package:	Bulk
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	48 A
Switching Voltage:	250VAC - Max
Coil Current:	160 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	8.4 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	30 ms
Release Time:	10 ms
Operating Temperature:	-50°C ~ 55°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose
