T9AS5D22-5

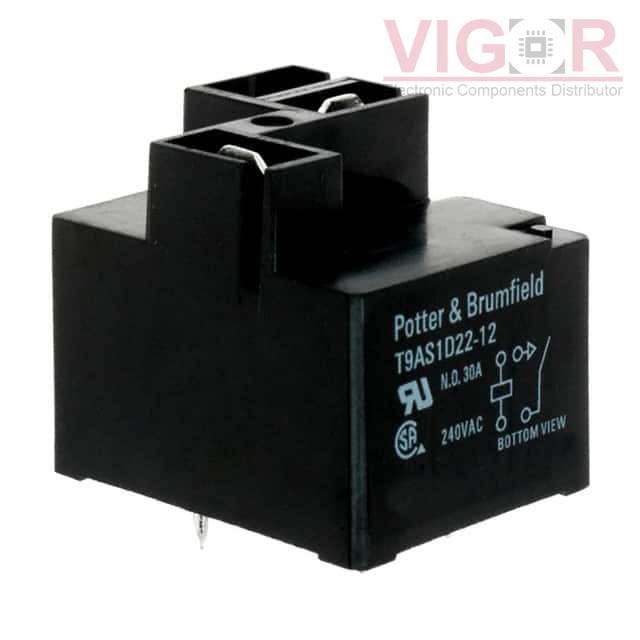

Image is for reference,
please contact us to get the real picture

Part No :: T9AS5D22-5

Manufacturer: TE Connectivity Potter & Brumfield Relays

Description: RELAY GEN PURPOSE SPDT 20A 5V

Catalog: Power Relays, Over 2 Amps

DataSheet: T9AS5D22-5 PDF

Availability: 3027 pieces

Unit Price: ~~$5.97000~~

Current price of T9AS5D22-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

T9AS5D22-5 Specifications

Type	Description
Series:	T9A
Package:	Bulk
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	5VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	20 A
Switching Voltage:	277VAC - Max
Coil Current:	200 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	3.75 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	15 ms
Release Time:	15 ms
Operating Temperature:	-55°C ~ 85°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose
