HE1AN-DC24V

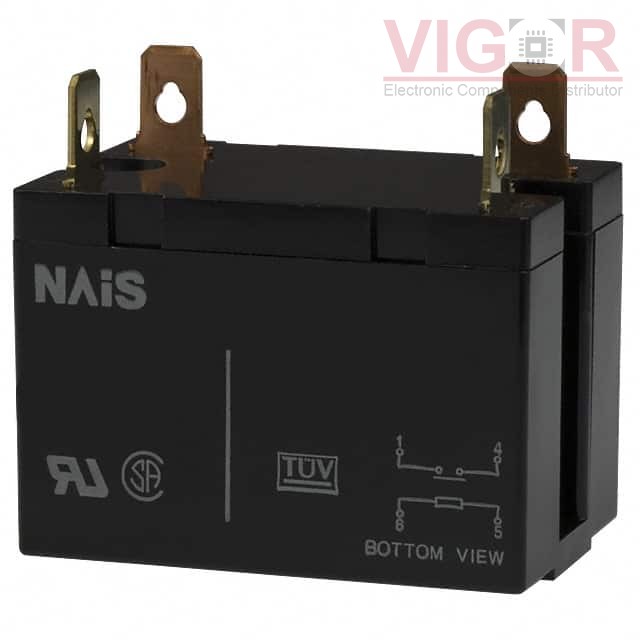

Product image
Product thumb
Part No :

HE1AN-DC24V

Manufacturer
Panasonic
VIGOR # :

2689740

Description
RELAY GEN PURPOSE SPST 30A 24V
Catalog
Power Relays, Over 2 Amps
DataSheet
HE1AN-DC24V PDF
Country of origin
Confirming
Date code
TBC
ads
HE1AN-DC24V Specifications
Type Description
Series:HE
Package:Bulk
Part Status:Active
Mounting Type:Chassis Mount
Coil Voltage:24VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):30 A
Switching Voltage:277VAC, 30VDC - Max
Coil Current:80 mA
Coil Type:Non Latching
Features:-
Termination Style:Plug In, Quick Connect - 0.250" (6.3mm)
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:16.8 VDC
Must Release Voltage:2.4 VDC
Operate Time:30 ms
Release Time:10 ms
Operating Temperature:-50°C ~ 55°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 6
Shipped from
HK warehouse
Expected Shipping Date
Nov 15 - Nov 19 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $21.5100 $21.51
10 $19.1200 $191.20
25 $18.1640 $454.10
50 $17.2080 $860.40
100 $16.2520 $1 625.20
250 $14.8180 $3 704.50
500 $13.8620 $6 931.00

Current price of HE1AN-DC24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
