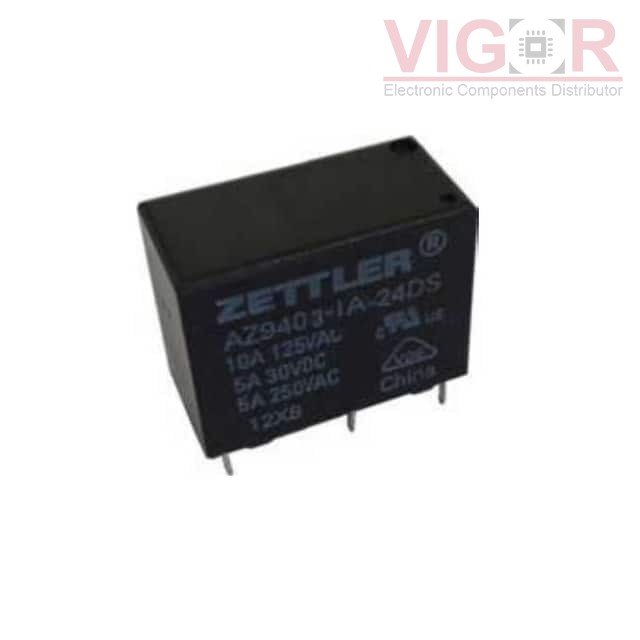

AZ9403-1A-24DE

Image is for reference,
please contact us to get the real picture

Part No :: AZ9403-1A-24DE

Manufacturer: American Zettler

Description: 10A MINIATURE POWER RELAY

Catalog: Power Relays, Over 2 Amps

DataSheet: AZ9403-1A-24DE PDF

Availability: 510 pieces

Unit Price: ~~$0.74000~~

Current price of AZ9403-1A-24DE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AZ9403-1A-24DE Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	24VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	10 A
Switching Voltage:	400VAC, 150VDC - Max
Coil Current:	18.8 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	18 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	8 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 110°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
