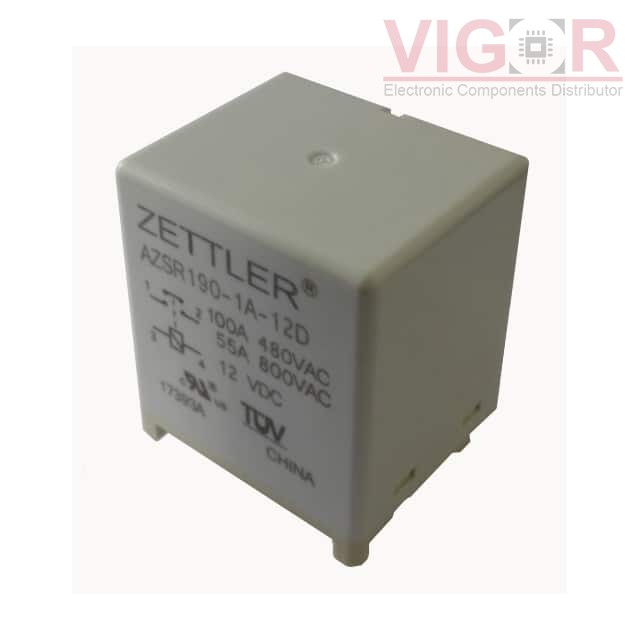

AZSR190-1A-12D

Part No :: AZSR190-1A-12D

Manufacturer: American Zettler

Description: 90A WIDE GAP RELAY

Catalog: Power Relays, Over 2 Amps

DataSheet: AZSR190-1A-12D PDF

Availability: 50 pieces

Current price of AZSR190-1A-12D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AZSR190-1A-12D Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	100 A
Switching Voltage:	800VAC - Max
Coil Current:	171.4 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	Class F
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	40 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	Solar
