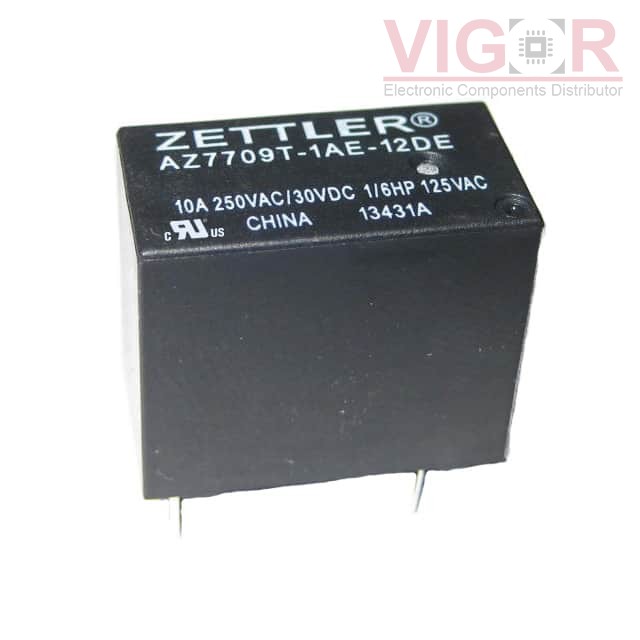

AZ7709-1AE-12DE

Part No :: AZ7709-1AE-12DE

Manufacturer: American Zettler

Description: 5A MINIATURE POWER RELAY

Catalog: Power Relays, Over 2 Amps

DataSheet: AZ7709-1AE-12DE PDF

Availability: 437 pieces

Current price of AZ7709-1AE-12DE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AZ7709-1AE-12DE Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	5 A
Switching Voltage:	250VAC, 30VDC - Max
Coil Current:	37.5 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	-
Must Operate Voltage:	8.4 VDC
Must Release Voltage:	0.6 VDC
Operate Time:	8 ms
Release Time:	4 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
