HE2AN-S-AC120V

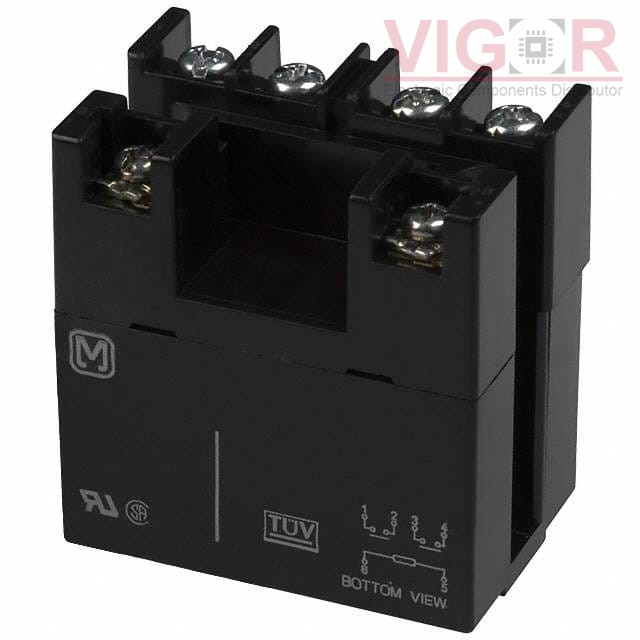

Image is for reference,
please contact us to get the real picture

Part No :: HE2AN-S-AC120V

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE DPST 25A 120V

Catalog: Power Relays, Over 2 Amps

DataSheet: HE2AN-S-AC120V PDF

Availability: 0 pieces

Unit Price: ~~$28.88000~~

Current price of HE2AN-S-AC120V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HE2AN-S-AC120V Specifications

Type	Description
Series:	HE
Package:	Bulk
Part Status:	Active
Mounting Type:	Chassis Mount
Coil Voltage:	120VAC
Contact Form:	DPST-NO (2 Form A)
Contact Rating (Current):	25 A
Switching Voltage:	277VAC, 30VDC - Max
Coil Current:	22.1 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Screw Terminal
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	84 VAC
Must Release Voltage:	18 VAC
Operate Time:	30 ms
Release Time:	30 ms
Operating Temperature:	-50°C ~ 55°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
