T9AP1D52-22-02

T9AP1D52-22-02

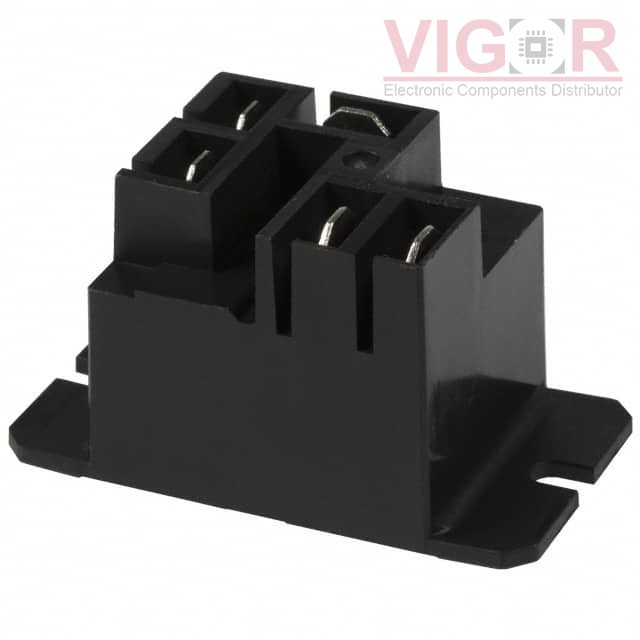

Image is for reference,
please contact us to get the real picture

Part No :

T9AP1D52-22-02

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPST 30A 22V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 06 - Oct 10 2025
DataSheet
T9AP1D52-22-02 PDF
Availability
0 pieces
Unit Price
$3.71000

Current price of T9AP1D52-22-02 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

T9AP1D52-22-02 Specifications
Type Description
Series:T9A
Package:Bulk
Part Status:Active
Mounting Type:Chassis Mount
Coil Voltage:22VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):30 A
Switching Voltage:277VAC - Max
Coil Current:45.5 mA
Coil Type:Non Latching
Features:-
Termination Style:Quick Connect - 0.187"/0.250"
Seal Rating:-
Coil Insulation:Class F
Must Operate Voltage:16.5 VDC
Must Release Voltage:2.2 VDC
Operate Time:15 ms
Release Time:15 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:General Purpose
