LKG1AF-24V-16

LKG1AF-24V-16

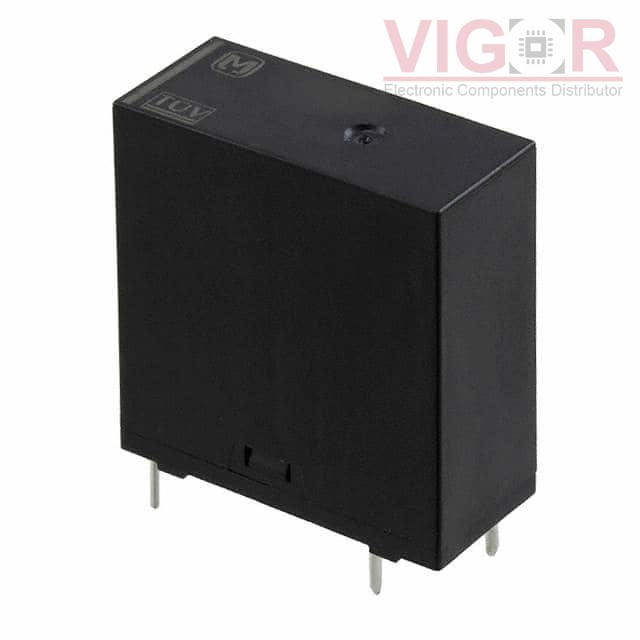

Image is for reference,
please contact us to get the real picture

Part No :

LKG1AF-24V-16

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 16A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 03 - Oct 07 2025
DataSheet
LKG1AF-24V-16 PDF
Availability
0 pieces
Unit Price
$2.35000

Current price of LKG1AF-24V-16 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LKG1AF-24V-16 Specifications
Type Description
Series:LK-G
Package:Box
Part Status:Not For New Designs
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:277VAC - Max
Coil Current:22.1 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:-
Must Operate Voltage:18 VDC
Must Release Voltage:2.4 VDC
Operate Time:15 ms
Release Time:20 ms
Operating Temperature:-40°C ~ 70°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
