AZ2800-2C-277AE

AZ2800-2C-277AE

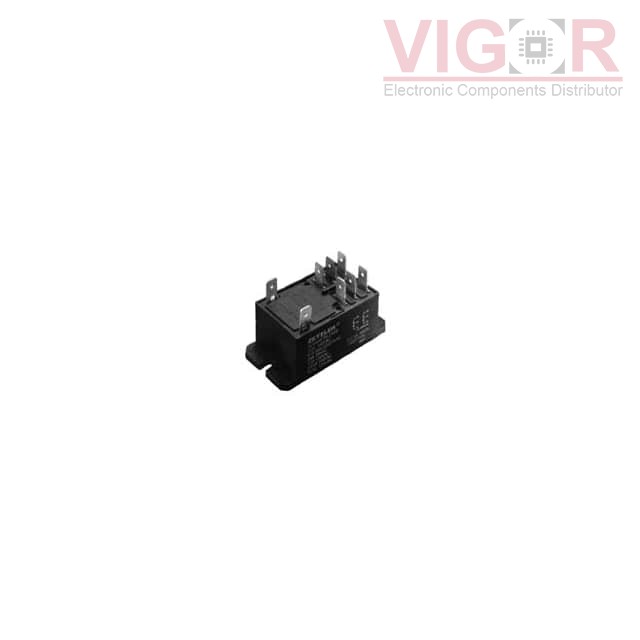

Image is for reference,
please contact us to get the real picture

Part No :

AZ2800-2C-277AE

Manufacturer
American Zettler
Description
40A MINIATURE POWER RELAY
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 01 - Oct 05 2025
DataSheet
AZ2800-2C-277AE PDF
Availability
34 pieces
Unit Price
$10.45000

Current price of AZ2800-2C-277AE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AZ2800-2C-277AE Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Mounting Type:Chassis Mount
Coil Voltage:277VAC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):3 A
Switching Voltage:600VAC, 30VDC - Max
Coil Current:14.4 mA
Coil Type:Non Latching
Features:-
Termination Style:Quick Connect - 0.187"/0.250"
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:221.6 VAC
Must Release Voltage:55.4 VAC
Operate Time:25 ms
Release Time:25 ms
Operating Temperature:-40°C ~ 65°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:EV Charging, Solar
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT HC2-H-DC48V-F

HC2-H-DC48V-F

RELAY GEN PURPOSE DPDT 7A 48V
HOT ADJ14024

ADJ14024

RELAY GEN PURPOSE SPDT 16A 24V

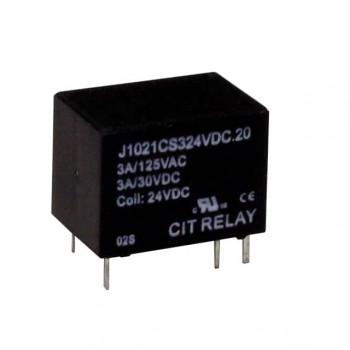

HOT J1021CS324VDC.20
