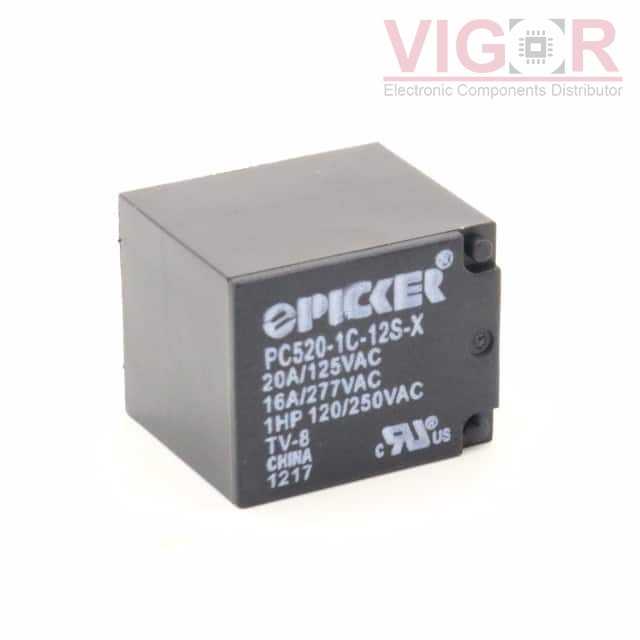

PC520-1C-12S-X

Part No :: PC520-1C-12S-X

Manufacturer: Picker Components

VIGOR # :: 2694177

Description: 20A SPDT SUGAR CUBE RELAY 12V

Catalog: Power Relays, Over 2 Amps

DataSheet: PC520-1C-12S-X PDF

Country of origin: -

Date code: -

PC520-1C-12S-X Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	20 A
Switching Voltage:	250VAC - Max
Coil Current:	30 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 105°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
