DE1A1B-L2-24V

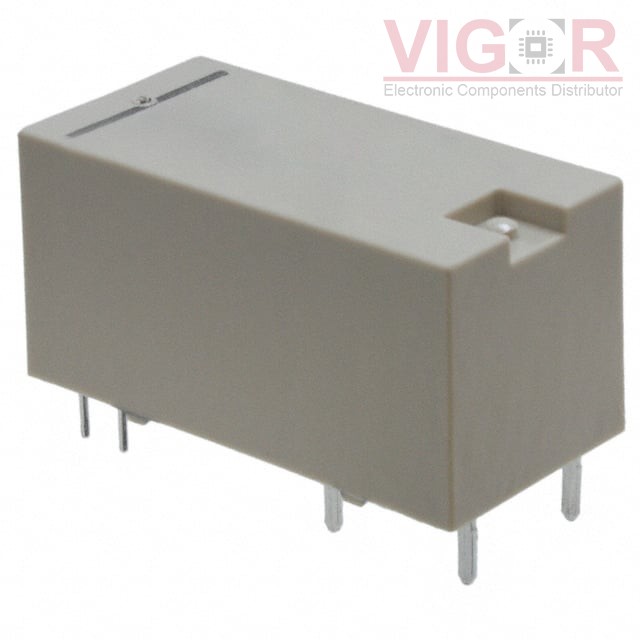

Product image
Product thumb
Part No :

DE1A1B-L2-24V

Manufacturer
Panasonic
VIGOR # :

2694334

Description
RELAY GEN PURPOSE DPST 8A 24V
Catalog
Power Relays, Over 2 Amps
DataSheet
DE1A1B-L2-24V PDF
Country of origin
Confirming
Date code
TBC
ads
DE1A1B-L2-24V Specifications
Type Description
Series:DE
Package:Tube
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current):8 A
Switching Voltage:250VAC, 30VDC - Max
Coil Current:8.3 mA
Coil Type:Latching, Dual Coil
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:16.8 VDC
Must Release Voltage:-
Operate Time:10 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 70°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 47
Shipped from
HK warehouse
Expected Shipping Date
Nov 17 - Nov 21 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $11.9900 $11.99
20 $10.6600 $213.20
40 $10.1270 $405.08
60 $9.5940 $575.64
100 $9.0610 $906.10
260 $8.2615 $2 147.99
500 $7.7285 $3 864.25
1000 $7.3288 $7 328.75

Current price of DE1A1B-L2-24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
