T9AS5L22-48

T9AS5L22-48

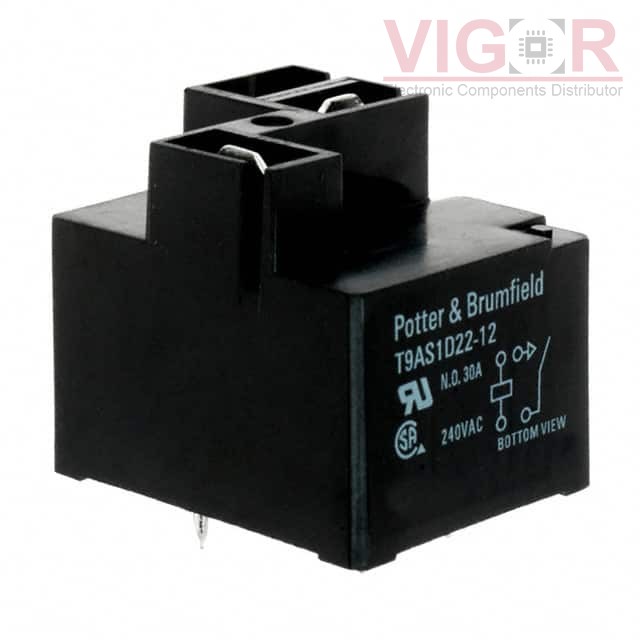

Image is for reference,
please contact us to get the real picture

Part No :

T9AS5L22-48

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPDT 20A 48V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 05 - Oct 09 2025
DataSheet
T9AS5L22-48 PDF
Availability
0 pieces
Unit Price
$5.31000

Current price of T9AS5L22-48 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

T9AS5L22-48 Specifications
Type Description
Series:T9A
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:48VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:277VAC - Max
Coil Current:18.8 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:36 VDC
Must Release Voltage:4.8 VDC
Operate Time:15 ms
Release Time:15 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:General Purpose
