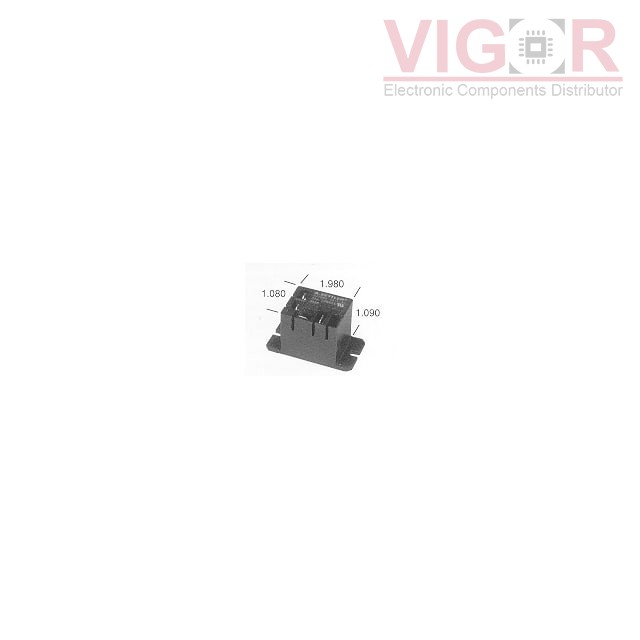

AZ2280-1A-12DEF

Part No :: AZ2280-1A-12DEF

Manufacturer: American Zettler

Description: 40A MINIATURE POWER RELAY

Catalog: Power Relays, Over 2 Amps

DataSheet: AZ2280-1A-12DEF PDF

Availability: 186 pieces

Current price of AZ2280-1A-12DEF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AZ2280-1A-12DEF Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Mounting Type:	Chassis Mount
Coil Voltage:	12VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	40 A
Switching Voltage:	277VAC, 28VDC - Max
Coil Current:	77 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.187"/0.250"
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-55°C ~ 85°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose
