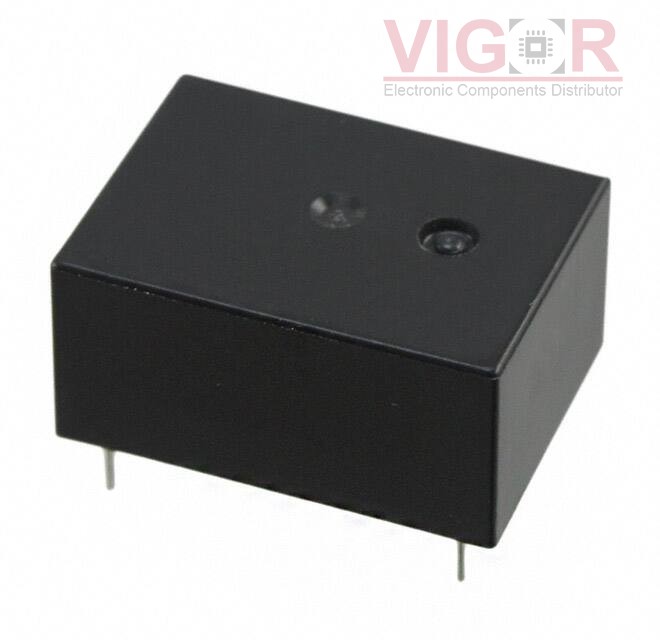

JVN1AF-18V-F

Part No :: JVN1AF-18V-F

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 16A 18V

Catalog: Power Relays, Over 2 Amps

DataSheet: JVN1AF-18V-F PDF

Availability: 0 pieces

Unit Price: ~~$5.18400~~

Current price of JVN1AF-18V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JVN1AF-18V-F Specifications

Type	Description
Series:	JV-N
Package:	Bulk
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	18VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	16 A
Switching Voltage:	277VAC, 30VDC - Max
Coil Current:	11.1 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	-
Must Operate Voltage:	13.5 VDC
Must Release Voltage:	0.9 VDC
Operate Time:	12 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
