V23061A1002A302

Product image
Product thumb
Part No :

V23061A1002A302

Manufacturer
TE Connectivity Potter & Brumfield Relays
VIGOR # :

2694959

Description
RELAY GENERAL PURPOSE SPST 8A 5V
Catalog
Power Relays, Over 2 Amps
DataSheet
V23061A1002A302 PDF
Country of origin
Confirming
Date code
TBC
ads
V23061A1002A302 Specifications
Type Description
Series:MSR, SCHRACK
Package:Tube
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:5VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):8 A
Switching Voltage:400VAC - Max
Coil Current:42.4 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:Class A
Must Operate Voltage:3.4 VDC
Must Release Voltage:0.5 VDC
Operate Time:10 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 28
Shipped from
HK warehouse
Expected Shipping Date
Nov 16 - Nov 20 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $7.1600 $7.16
20 $6.7080 $134.16
40 $5.9628 $238.51
60 $5.6647 $339.88
100 $5.3666 $536.66
260 $4.7703 $1 240.27
500 $4.4721 $2 236.07
1000 $4.1740 $4 174.00

Current price of V23061A1002A302 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
LY3-0-AC24

LY3-0-AC24

RELAY GEN PURPOSE 3PDT 10A 24V

LY1F-AC24

LY1F-AC24

RELAY GEN PURPOSE SPDT 15A 24V

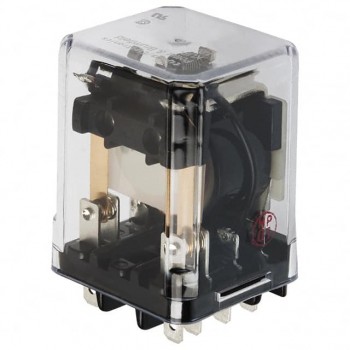

KUP-14D15-12
