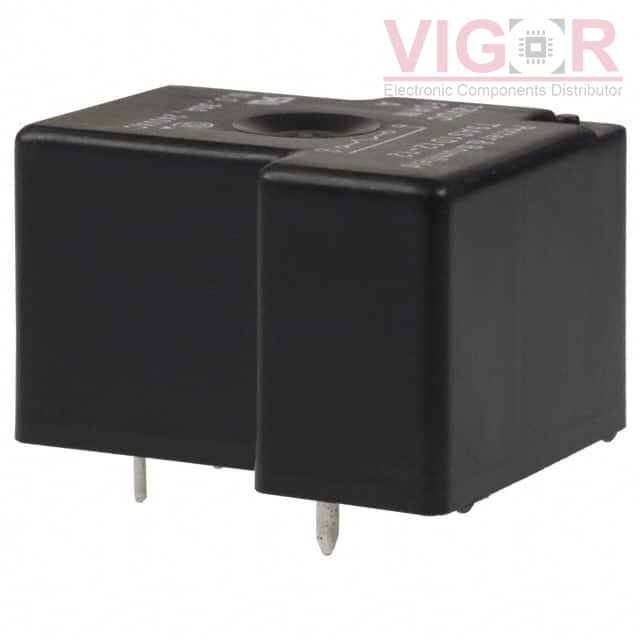

T9AV1D12-22

Part No :: T9AV1D12-22

Manufacturer: TE Connectivity Potter & Brumfield Relays

Description: RELAY GEN PURPOSE SPST 30A 22V

Catalog: Power Relays, Over 2 Amps

DataSheet: T9AV1D12-22 PDF

Availability: 0 pieces

Current price of T9AV1D12-22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

T9AV1D12-22 Specifications

Type	Description
Series:	T9A
Package:	Bulk
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	22VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	30 A
Switching Voltage:	277VAC - Max
Coil Current:	45.5 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	Class F
Must Operate Voltage:	16.5 VDC
Must Release Voltage:	2.2 VDC
Operate Time:	15 ms
Release Time:	15 ms
Operating Temperature:	-55°C ~ 85°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose
