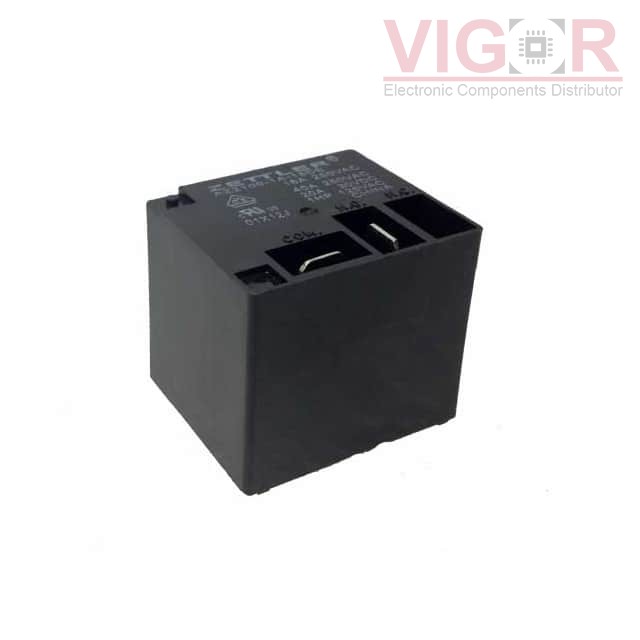

AZ2100-1C-24DEF

Part No :: AZ2100-1C-24DEF

Manufacturer: American Zettler

Description: 40A MINIATURE POWER RELAY

Catalog: Power Relays, Over 2 Amps

DataSheet: AZ2100-1C-24DEF PDF

Availability: 27 pieces

Current price of AZ2100-1C-24DEF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AZ2100-1C-24DEF Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	24VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	15 A
Switching Voltage:	277VAC, 30VDC - Max
Coil Current:	36.4 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	18 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-55°C ~ 85°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose
