HL1-H-DC12V-F

Product image
Product thumb
Part No :

HL1-H-DC12V-F

Manufacturer
Panasonic
VIGOR # :

2695599

Description
RELAY GEN PURPOSE SPDT 15A 12V
Catalog
Power Relays, Over 2 Amps
DataSheet
HL1-H-DC12V-F PDF
Country of origin
Confirming
Date code
TBC
ads
HL1-H-DC12V-F Specifications
Type Description
Series:HL
Package:Bulk
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:12VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):15 A
Switching Voltage:125VAC - Nom
Coil Current:75 mA
Coil Type:Non Latching
Features:-
Termination Style:Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:9.6 VDC
Must Release Voltage:1.2 VDC
Operate Time:25 ms
Release Time:25 ms
Operating Temperature:-50°C ~ 70°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: Available on Request ?
Shipped from
HK warehouse
Expected Shipping Date
Awaiting confirmation
Pricing(USD)
Quantity Unit Price Ext. Price
1 $11.0200 $11.02
10 $10.3280 $103.28
25 $9.1800 $229.50
50 $8.7210 $436.05
100 $8.2620 $826.20
250 $7.3440 $1 836.00
500 $6.8850 $3 442.50
1000 $6.4260 $6 426.00

Current price of HL1-H-DC12V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
RT424730

RT424730

RELAY GEN PURPOSE DPDT 8A 230V

G7L-2A-BJ DC100

G7L-2A-BJ DC100

RELAY GEN PURPOSE DPST 25A 100V

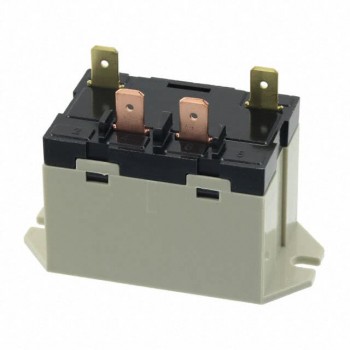

G7L-1A-TUB-CB-AC100/120
