XT484S15

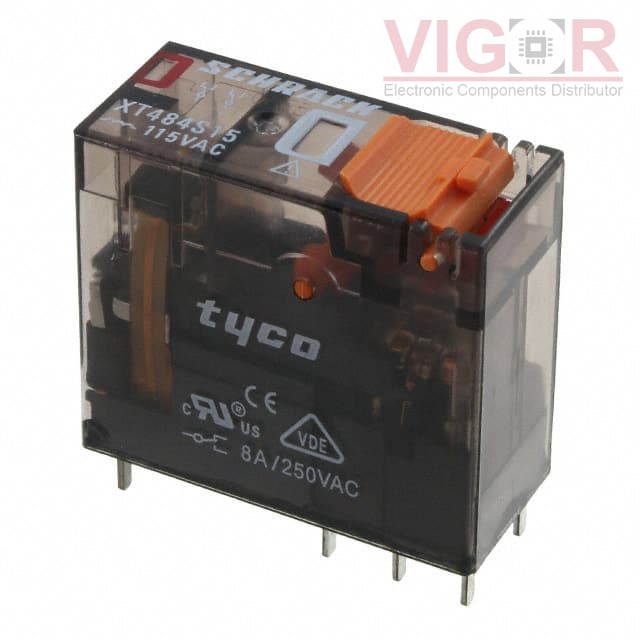

Product image
Product thumb
Part No :

XT484S15

Manufacturer
TE Connectivity Potter & Brumfield Relays
VIGOR # :

2696053

Description
RELAY GEN PURPOSE DPDT 8A 115V
Catalog
Power Relays, Over 2 Amps
DataSheet
XT484S15 PDF
Country of origin
Confirming
Date code
TBC
ads
XT484S15 Specifications
Type Description
Series:XT, SCHRACK
Package:Tube
Part Status:Active
Mounting Type:Socketable
Coil Voltage:115VAC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):8 A
Switching Voltage:400VAC - Max
Coil Current:-
Coil Type:Non Latching
Features:Lighted Indicator
Termination Style:Plug In
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:86.3 VAC
Must Release Voltage:17.3 VAC
Operate Time:9 ms
Release Time:6 ms
Operating Temperature:-40°C ~ 70°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: Available on Request ?
Shipped from
HK warehouse
Expected Shipping Date
Awaiting confirmation
Pricing(USD)
Quantity Unit Price Ext. Price
1 $17.8400 $17.84
10 $15.8602 $158.60
30 $15.0672 $452.02
50 $14.2742 $713.71
100 $13.4812 $1 348.12
250 $12.2917 $3 072.92
500 $11.4987 $5 749.34
1000 $10.9039 $10 903.91

Current price of XT484S15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
20.21.9.012.0000

20.21.9.012.0000

2 STEP RELAY SPST 16A 12V

RR2P-ULDC12V

RR2P-ULDC12V

RELAY GEN PURPOSE DPDT 10A 12V

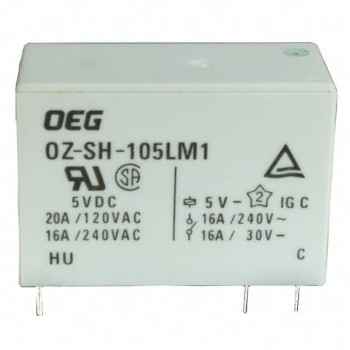

OZ-SH-105LM1,294
