JTN1S-TMP-F-DC24V

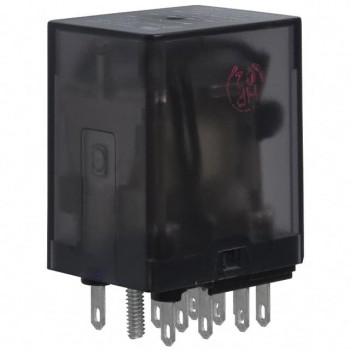

Image is for reference,
please contact us to get the real picture

Part No :: JTN1S-TMP-F-DC24V

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPDT 20A 24V

Catalog: Power Relays, Over 2 Amps

DataSheet: JTN1S-TMP-F-DC24V PDF

Availability: 1068 pieces

Unit Price: ~~$4.63000~~

Current price of JTN1S-TMP-F-DC24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JTN1S-TMP-F-DC24V Specifications

Type	Description
Series:	JT-N
Package:	Bulk
Part Status:	Not For New Designs
Mounting Type:	Through Hole
Coil Voltage:	24VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	20 A
Switching Voltage:	277VAC - Max
Coil Current:	33.3 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	18 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	20 ms
Release Time:	10 ms
Operating Temperature:	-55°C ~ 85°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
