NC4EBD-JPL2-DC5V

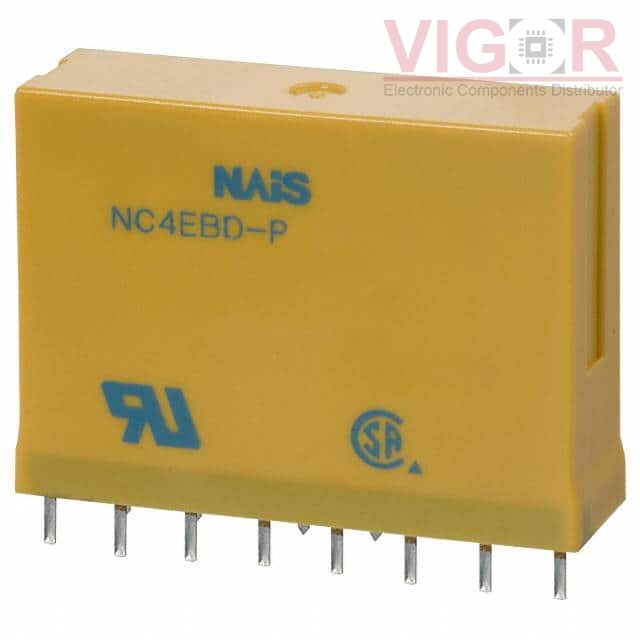

Product image
Product thumb
Part No :

NC4EBD-JPL2-DC5V

Manufacturer
Panasonic
VIGOR # :

4556076

Description
RELAY GENERAL PURPOSE 4PDT 5A 5V
Catalog
Power Relays, Over 2 Amps
DataSheet
NC4EBD-JPL2-DC5V PDF
Country of origin
-
Date code
-
ads
NC4EBD-JPL2-DC5V Specifications
Type Description
Series:NC
Package:Tube
Part Status:Obsolete
Mounting Type:Through Hole
Coil Voltage:5VDC
Contact Form:4PDT (4 Form C)
Contact Rating (Current):5 A
Switching Voltage:250VAC - Max
Coil Current:320 mA
Coil Type:Latching, Dual Coil
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:-
Must Operate Voltage:4 VDC
Must Release Voltage:-
Operate Time:20 ms
Release Time:10 ms
Operating Temperature:-40°C ~ 55°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
