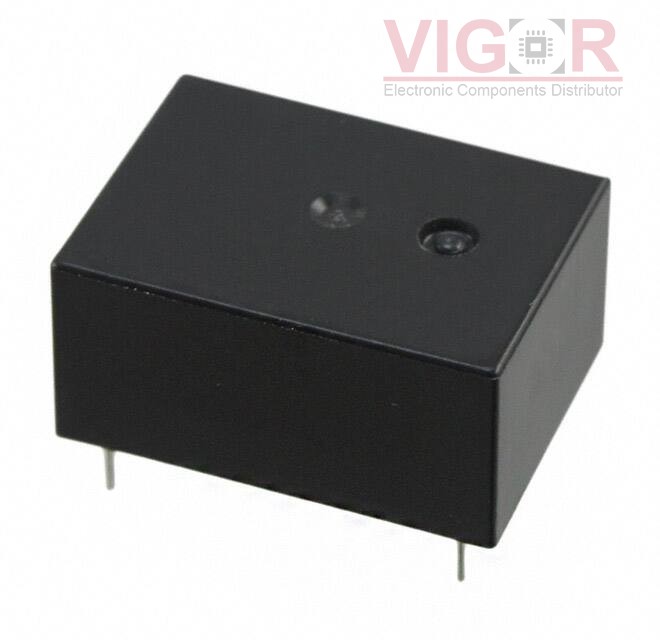

JVN1A-18V

Part No :: JVN1A-18V

Manufacturer: Panasonic

VIGOR # :: 4556476

Description: RELAY GEN PURPOSE SPST 16A 18V

Catalog: Power Relays, Over 2 Amps

DataSheet: JVN1A-18V PDF

Country of origin: -

Date code: -

JVN1A-18V Specifications

Type	Description
Series:	JV-N
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	18VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	16 A
Switching Voltage:	277VAC, 30VDC - Max
Coil Current:	11.1 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	-
Must Operate Voltage:	13.5 VDC
Must Release Voltage:	0.9 VDC
Operate Time:	12 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Alloy
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 20 - May 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of JVN1A-18V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

HC4D-HPL-AC115V

RELAY GEN PURPOSE 4PDT 3A 115V

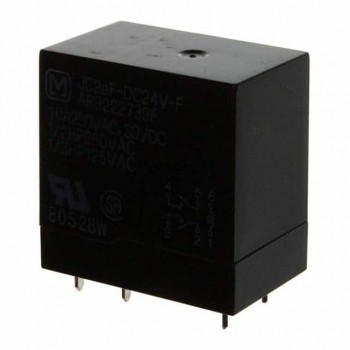

JC2A-DC12V
