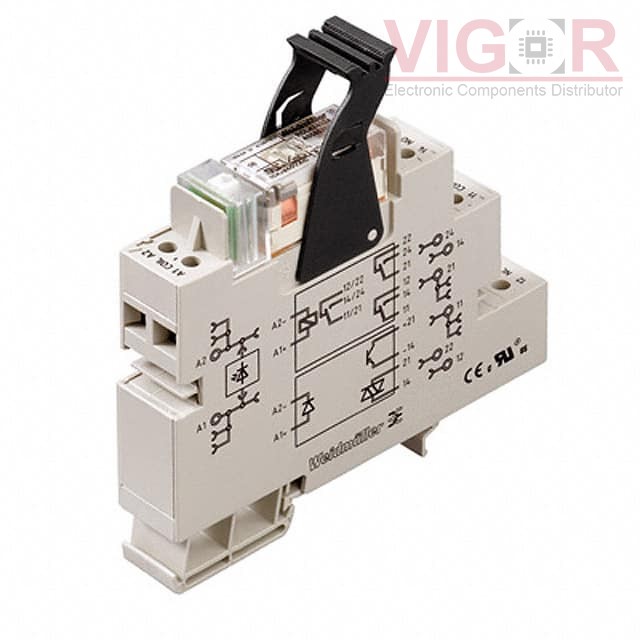

8536501001

Part No :: 8536501001

Manufacturer: Weidmuller

VIGOR # :: 4556488

Description: RELAY GEN PURPOSE DPDT 10A 12V

Catalog: Power Relays, Over 2 Amps

DataSheet: 8536501001 PDF

Country of origin: Confirming

Date code: TBC

8536501001 Specifications

Type	Description
Series:	PRS
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	DIN Rail
Coil Voltage:	12VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	10 A
Switching Voltage:	250VAC - Max
Coil Current:	33.3 mA
Coil Type:	Non Latching
Features:	Lighted Indicator, Socket Included
Termination Style:	Screw Terminal
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	8.4 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	-
Release Time:	-
Operating Temperature:	-40°C ~ 50°C
Contact Material:	-
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
