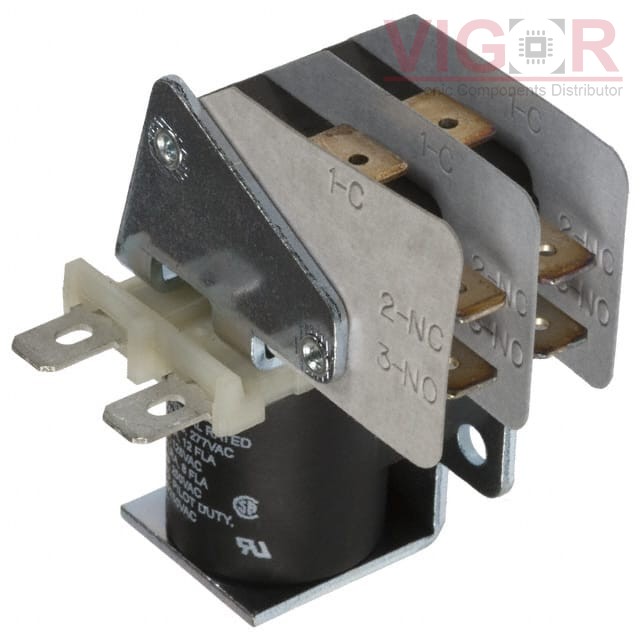

S87R5A2B1D1-120

Part No :: S87R5A2B1D1-120

Manufacturer: TE Connectivity Potter & Brumfield Relays

VIGOR # :: 4556731

Description: RELAY GEN PURPOSE SPDT 20A 120V

Catalog: Power Relays, Over 2 Amps

DataSheet: S87R5A2B1D1-120 PDF

Country of origin: -

Date code: -

S87R5A2B1D1-120 Specifications

Type	Description
Series:	S87R
Package:	Tray
Part Status:	Obsolete
Mounting Type:	Chassis Mount
Coil Voltage:	120VAC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	20 A
Switching Voltage:	277VAC - Max
Coil Current:	33 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.250" (6.3mm)
Seal Rating:	-
Coil Insulation:	Class B
Must Operate Voltage:	102 VAC
Must Release Voltage:	-
Operate Time:	-
Release Time:	-
Operating Temperature:	-10°C ~ 65°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose
