JM1AN-TMP-DC12V

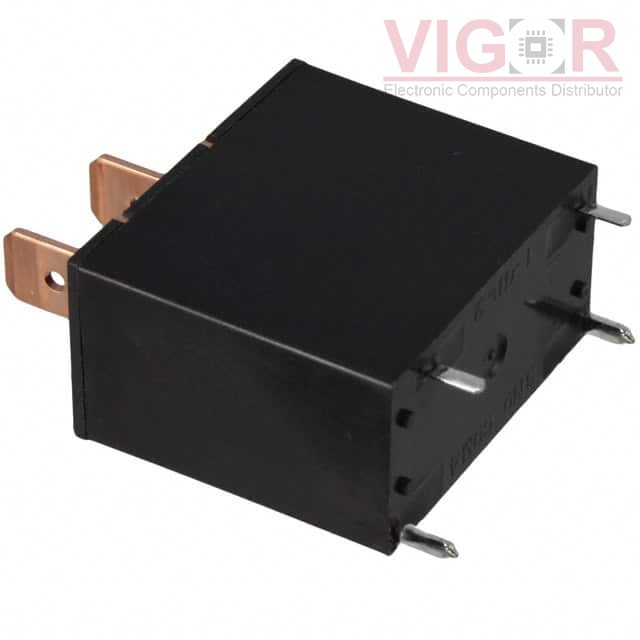

Product image
Product thumb
Part No :

JM1AN-TMP-DC12V

Manufacturer
Panasonic
VIGOR # :

4557123

Description
RELAY GEN PURPOSE SPST 20A 12V
Catalog
Power Relays, Over 2 Amps
DataSheet
JM1AN-TMP-DC12V PDF
Country of origin
-
Date code
-
ads
JM1AN-TMP-DC12V Specifications
Type Description
Series:JM
Package:Bulk
Part Status:Obsolete
Mounting Type:Through Hole
Coil Voltage:12VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):20 A
Switching Voltage:250VAC - Max
Coil Current:75 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:Sealed - Flux Protection
Coil Insulation:-
Must Operate Voltage:8.4 VDC
Must Release Voltage:1.2 VDC
Operate Time:20 ms
Release Time:10 ms
Operating Temperature:-40°C ~ 60°C
Contact Material:Silver Alloy
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
May 05 - May 09 2026
Pricing(USD)
Quantity Unit Price Ext. Price

Current price of JM1AN-TMP-DC12V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
T7CV1D-12

T7CV1D-12

RELAY GEN PURPOSE SPST 12A 12V

HC2E-HP-AC24V-F

HC2E-HP-AC24V-F

RELAY GEN PURPOSE DPDT 3A 24VAC

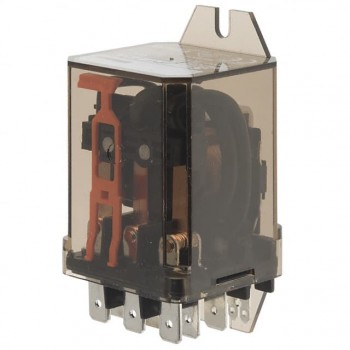

RM839012
