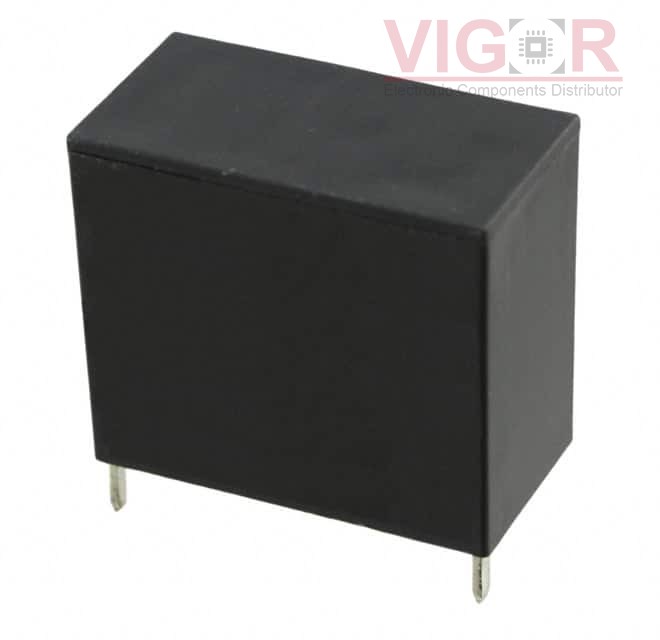

JM1AN-TMP-DC24V-F

Part No :: JM1AN-TMP-DC24V-F

Manufacturer: Panasonic

VIGOR # :: 4557146

Description: RELAY GEN PURPOSE SPST 20A 24V

Catalog: Power Relays, Over 2 Amps

DataSheet: JM1AN-TMP-DC24V-F PDF

Country of origin: Confirming

Date code: TBC

JM1AN-TMP-DC24V-F Specifications

Type	Description
Series:	JM
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	24VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	20 A
Switching Voltage:	250VAC - Max
Coil Current:	37.5 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	-
Must Operate Voltage:	16.8 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	20 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 60°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
