HL1-H-AC24V

HL1-H-AC24V

Image is for reference,
please contact us to get the real picture

Part No :

HL1-H-AC24V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPDT 15A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 18 - Oct 22 2025
DataSheet
HL1-H-AC24V PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HL1-H-AC24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HL1-H-AC24V Specifications
Type Description
Series:HL
Package:Bulk
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:24VAC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):15 A
Switching Voltage:125VAC - Nom
Coil Current:50 mA
Coil Type:Non Latching
Features:-
Termination Style:Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:19.2 VAC
Must Release Voltage:7.2 VAC
Operate Time:10 ms
Release Time:10 ms
Operating Temperature:-50°C ~ 70°C
Contact Material:Silver Alloy
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ALE74B12

ALE74B12

RELAY GEN PURPOSE SPST 16A 12V
HOT JQ1PF-F-12V-F

JQ1PF-F-12V-F

JQ RELAY 1 FORM C 12V

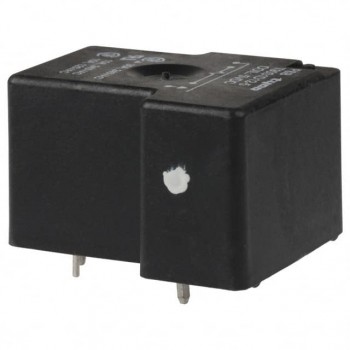

HOT T90S5D12-5
