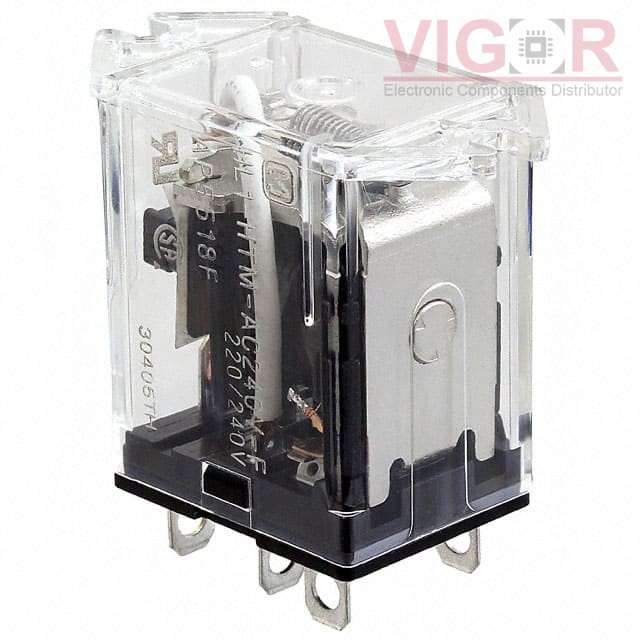

HL1-HTM-AC240V-F

Part No :: HL1-HTM-AC240V-F

Manufacturer: Panasonic

VIGOR # :: 4557769

Description: RELAY GEN PURPOSE SPDT 15A 240V

Catalog: Power Relays, Over 2 Amps

DataSheet: HL1-HTM-AC240V-F PDF

Country of origin: Confirming

Date code: TBC

HL1-HTM-AC240V-F Specifications

Type	Description
Series:	HL
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Chassis Mount
Coil Voltage:	240VAC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	15 A
Switching Voltage:	125VAC - Nom
Coil Current:	5 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.187" (4.7mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	192 VAC
Must Release Voltage:	72 VAC
Operate Time:	10 ms
Release Time:	10 ms
Operating Temperature:	-50°C ~ 70°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
