8690300000

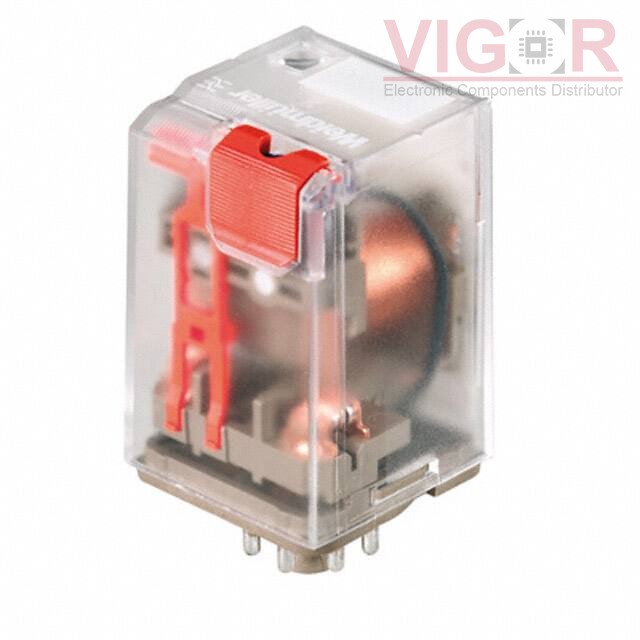

Image is for reference,
please contact us to get the real picture

Part No :: 8690300000

Manufacturer: Weidmuller

Description: RELAY GEN PURPOSE DPDT 10A 48V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Oct 28 - Nov 01 2025

DataSheet: 8690300000 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 8690300000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8690300000 Specifications

Type	Description
Series:	RRD
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Socketable
Coil Voltage:	48VAC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	10 A
Switching Voltage:	400VAC - Max
Coil Current:	47.5 mA
Coil Type:	Non Latching
Features:	Lighted Indicator, Test Button
Termination Style:	Plug In, 8 Pin (Octal)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	38.4 VAC
Must Release Voltage:	14.4 VAC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 50°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose
