JM1AN-P-DC5V-F

JM1AN-P-DC5V-F

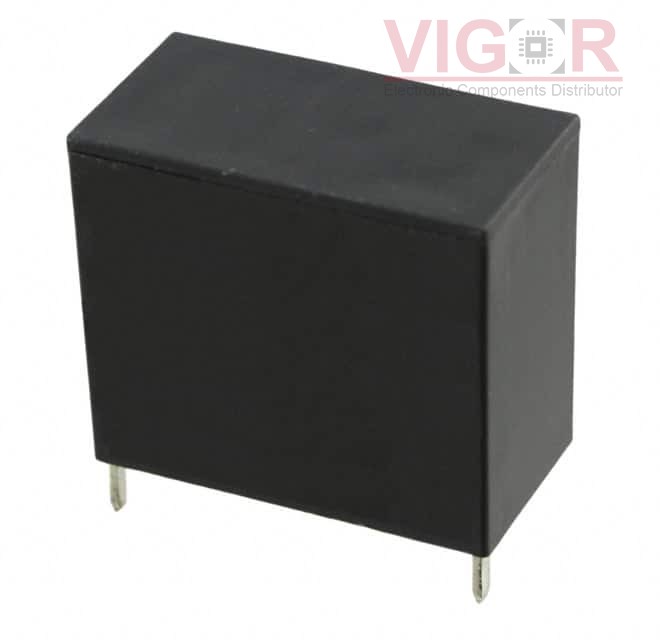

Image is for reference,
please contact us to get the real picture

Part No :

JM1AN-P-DC5V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 20A 5V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 29 - Nov 02 2025
DataSheet
JM1AN-P-DC5V-F PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of JM1AN-P-DC5V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JM1AN-P-DC5V-F Specifications
Type Description
Series:JM
Package:Bulk
Part Status:Obsolete
Mounting Type:Through Hole
Coil Voltage:5VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):20 A
Switching Voltage:250VAC - Max
Coil Current:180 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:3.5 VDC
Must Release Voltage:0.5 VDC
Operate Time:20 ms
Release Time:10 ms
Operating Temperature:-40°C ~ 60°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
