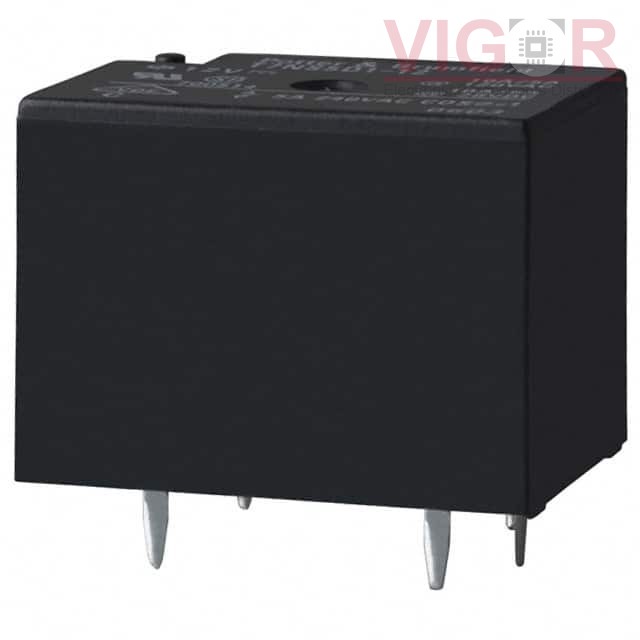

T7NS5D1-18

Part No :: T7NS5D1-18

Manufacturer: TE Connectivity Potter & Brumfield Relays

VIGOR # :: 4557914

Description: RELAY GEN PURPOSE SPDT 10A 18V

Catalog: Power Relays, Over 2 Amps

DataSheet: T7NS5D1-18 PDF

Country of origin: Confirming

Date code: TBC

T7NS5D1-18 Specifications

Type	Description
Series:	T7N
Package:	Tube
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	18VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	10 A
Switching Voltage:	240VAC, 28VDC - Max
Coil Current:	20 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	12.6 VDC
Must Release Voltage:	1.8 VDC
Operate Time:	9 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose
