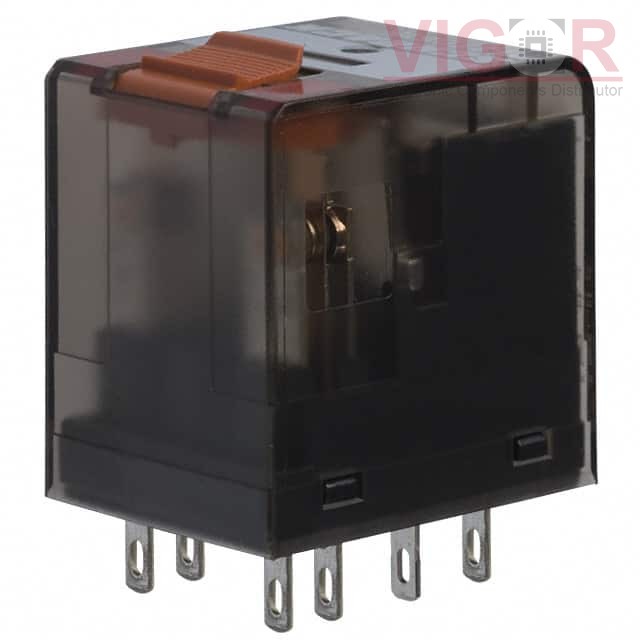

PT380024

Part No :: PT380024

Manufacturer: TE Connectivity Potter & Brumfield Relays

VIGOR # :: 4557929

Description: RELAY GEN PURPOSE 3PDT 10A 24V

Catalog: Power Relays, Over 2 Amps

DataSheet: PT380024 PDF

Country of origin: -

Date code: -

PT380024 Specifications

Type	Description
Series:	PT, SCHRACK
Package:	Bulk
Part Status:	Discontinued at Digi-Key
Mounting Type:	Socketable
Coil Voltage:	24VDC
Contact Form:	3PDT (3 Form C)
Contact Rating (Current):	10 A
Switching Voltage:	400VAC - Max
Coil Current:	30.8 mA
Coil Type:	Non Latching
Features:	Mechanical Indicator, Test Button
Termination Style:	Plug In, Quick Connect - 0.110" (2.8mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	18 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose
