S86R11A1B1D1120

S86R11A1B1D1120

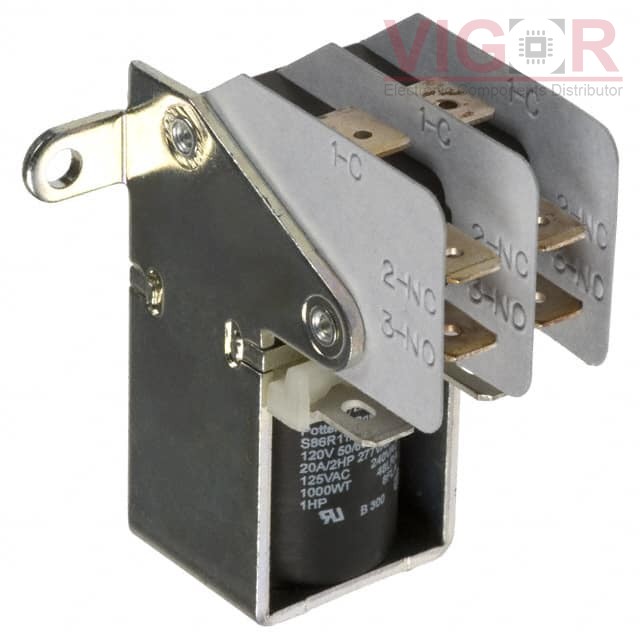

Image is for reference,
please contact us to get the real picture

Part No :

S86R11A1B1D1120

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE DPDT 20A 120V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Nov 09 - Nov 13 2025
DataSheet
S86R11A1B1D1120 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of S86R11A1B1D1120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S86R11A1B1D1120 Specifications
Type Description
Series:S86R
Package:Tray
Part Status:Obsolete
Mounting Type:Chassis Mount
Coil Voltage:120VAC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):20 A
Switching Voltage:277VAC - Max
Coil Current:33 mA
Coil Type:Non Latching
Features:-
Termination Style:Quick Connect - 0.250" (6.3mm)
Seal Rating:-
Coil Insulation:Class B
Must Operate Voltage:102 VAC
Must Release Voltage:-
Operate Time:-
Release Time:-
Operating Temperature:-10°C ~ 65°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:General Purpose
