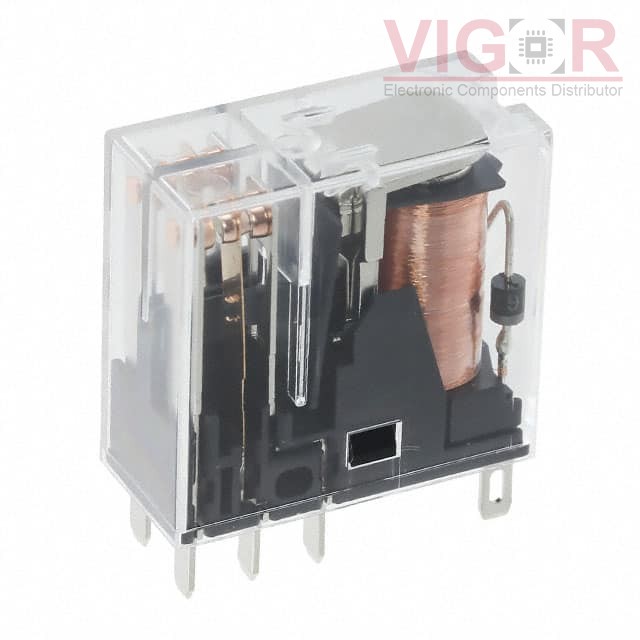

AHN22205

Part No :: AHN22205

Manufacturer: Panasonic

VIGOR # :: 4558469

Description: RELAY GENERAL PURPOSE DPDT 5A 5V

Catalog: Power Relays, Over 2 Amps

DataSheet: AHN22205 PDF

Country of origin: Confirming

Date code: TBC

AHN22205 Specifications

Type	Description
Series:	AHN
Package:	Tube
Part Status:	Obsolete
Mounting Type:	Socketable
Coil Voltage:	5VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	5 A
Switching Voltage:	250VAC, 30VDC - Max
Coil Current:	106 mA
Coil Type:	Non Latching
Features:	Diode
Termination Style:	Plug In
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	3.5 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	15 ms
Release Time:	20 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose
