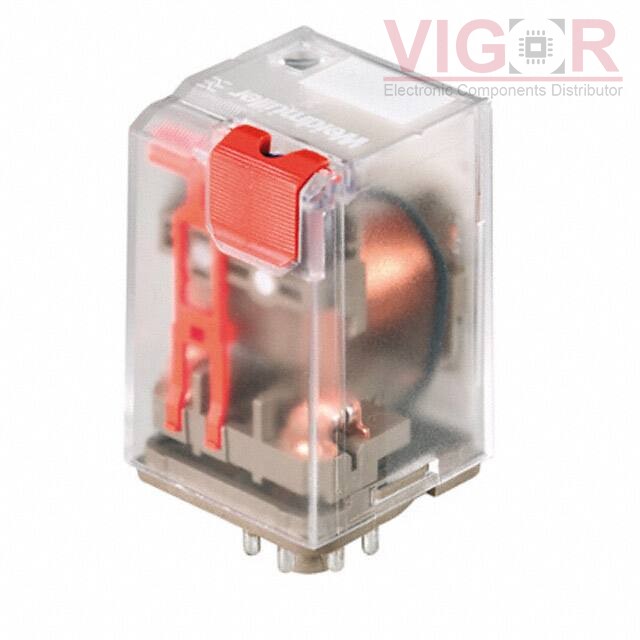

8690270000

Part No :: 8690270000

Manufacturer: Weidmuller

VIGOR # :: 4558528

Description: RELAY GEN PURPOSE DPDT 10A 24V

Catalog: Power Relays, Over 2 Amps

DataSheet: 8690270000 PDF

Country of origin: Confirming

Date code: TBC

8690270000 Specifications

Type	Description
Series:	RRD
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Socketable
Coil Voltage:	24VAC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	10 A
Switching Voltage:	400VAC - Max
Coil Current:	94.2 mA
Coil Type:	Non Latching
Features:	Test Button
Termination Style:	Plug In, 8 Pin (Octal)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	19.2 VAC
Must Release Voltage:	7.2 VAC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 50°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
