OUAZ-SH-109L,900

OUAZ-SH-109L,900

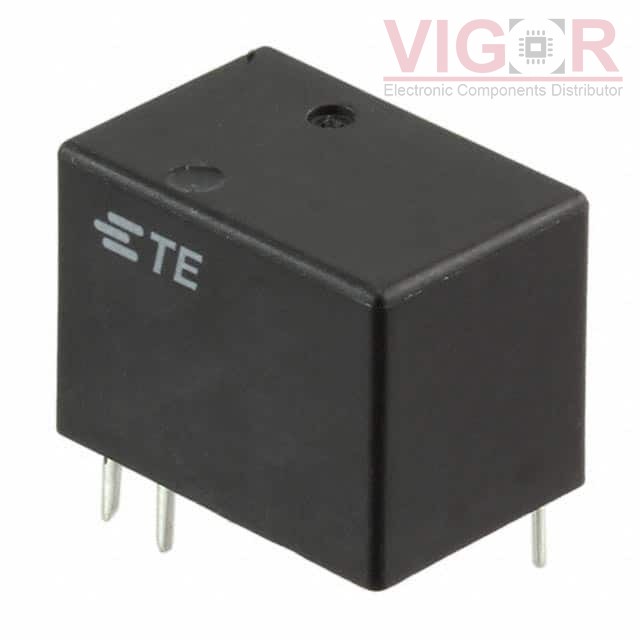

Image is for reference,
please contact us to get the real picture

Part No :

OUAZ-SH-109L,900

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY TELECOM SPDT 1A 9VDC
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 28 - Nov 01 2025
DataSheet
OUAZ-SH-109L,900 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of OUAZ-SH-109L,900 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

OUAZ-SH-109L,900 Specifications
Type Description
Series:OUAZ, OEG
Package:Tube
Part Status:Obsolete
Mounting Type:Through Hole
Coil Voltage:9VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):1 A
Switching Voltage:120VAC, 24VDC - Max
Coil Current:22.2 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:-
Must Operate Voltage:6.75 VDC
Must Release Voltage:0.9 VDC
Operate Time:10 ms
Release Time:7 ms
Operating Temperature:-30°C ~ 70°C
Contact Material:Silver Palladium (AgPd), Gold (Au)
Relay Type:Telecom
