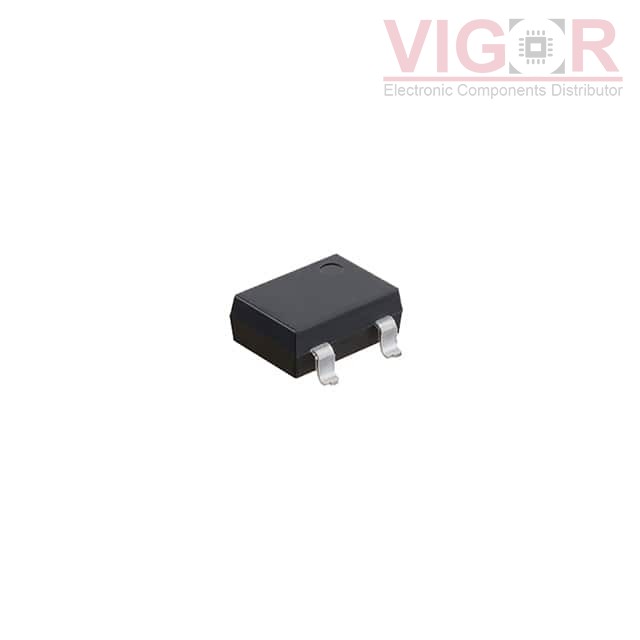

AQV258H5AZ

Image is for reference,
please contact us to get the real picture

Part No :: AQV258H5AZ

Manufacturer: Panasonic

Description: SSR RELAY SPST-NO 0.020A 1500V S

Catalog: Solid State Relays

DataSheet: AQV258H5AZ PDF

Availability: 0 pieces

Unit Price: ~~$6.88800~~

Current price of AQV258H5AZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AQV258H5AZ Specifications

Type	Description
Series:	PhotoMOS™ AQV
Package:	Tape & Reel (TR)
Part Status:	Active
Mounting Type:	Surface Mount
Circuit:	SPST-NO (1 Form A)
Output Type:	AC, DC
Voltage - Input:	1.32VDC
Voltage - Load:	0 V ~ 1500.0 V
Load Current:	20 mA
On-State Resistance (Max):	500 Ohms
Termination Style:	Gull Wing
Package / Case:	6-SMD (0.300", 7.62mm), 5 Leads
Supplier Device Package:	6-SMD
