TC164-JR-0756RL

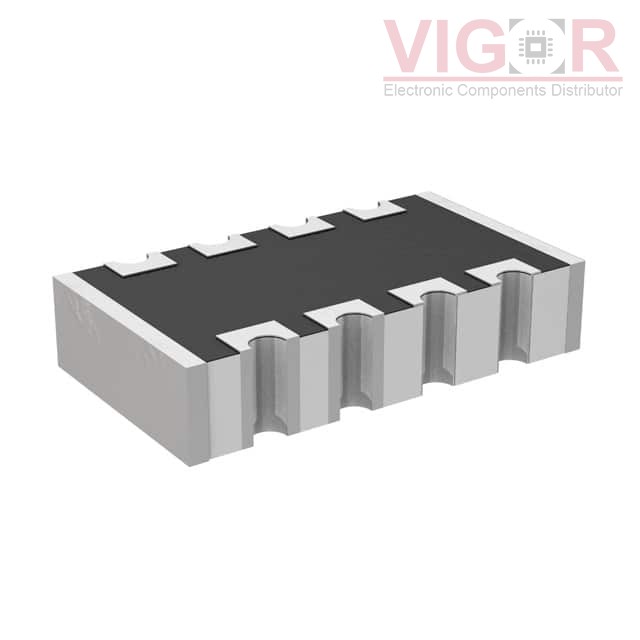

Image is for reference,
please contact us to get the real picture

Part No :: TC164-JR-0756RL

Manufacturer: Yageo

Description: RES ARRAY 4 RES 56 OHM 1206

Catalog: Arrays/Networks Resistors

DataSheet: TC164-JR-0756RL PDF

Availability: 5000 pieces

Unit Price: ~~$0.01527~~

Current price of TC164-JR-0756RL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TC164-JR-0756RL Specifications

Type	Description
Series:	TC164
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit Type:	Isolated
Resistance (Ohms):	56
Tolerance:	±5%
Number of Resistors:	4
Resistor Matching Ratio:	-
Resistor-Ratio-Drift:	-
Number of Pins:	8
Power Per Element:	62.5mW
Temperature Coefficient:	±200ppm/°C
Operating Temperature:	-55°C ~ 155°C
Applications:	DDRAM, SDRAM
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric), Concave, Long Side Terminals
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.028" (0.70mm)
